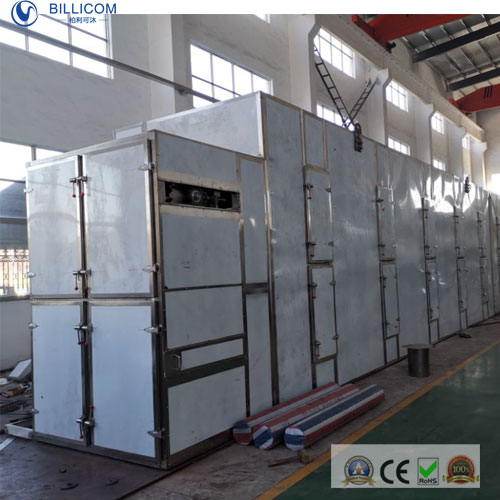

Mesh Belt Dryer

What is the Mesh Belt Dryer

Machine Video Link: https://youtu.be/SiYdTaOhBX0

Mesh Belt Dryer Machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of Traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & altered cake state paste material should be made into particles or strips before drying process.

Model		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit		4	5	4	5	4	5	10
Width of belt(m)		1.2		1.6		2
Length of dry section(m)		8	10	8	10	8	10	20
Thickness of raw material spreading(mm)		10-80
Operation temperature(oC)		50-140
Steam pressure(MPa)		0.2-0.8
Steam consumption (kg/h)		120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying time (h)		0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying capacity (kg water/h)		60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total power (kw)		11.4	13.6	14.6	18.7	19.7	24.5	51
Overall dimensions	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5
Weight (kg)		4500	5600	5300	6400	6200	7500	14000

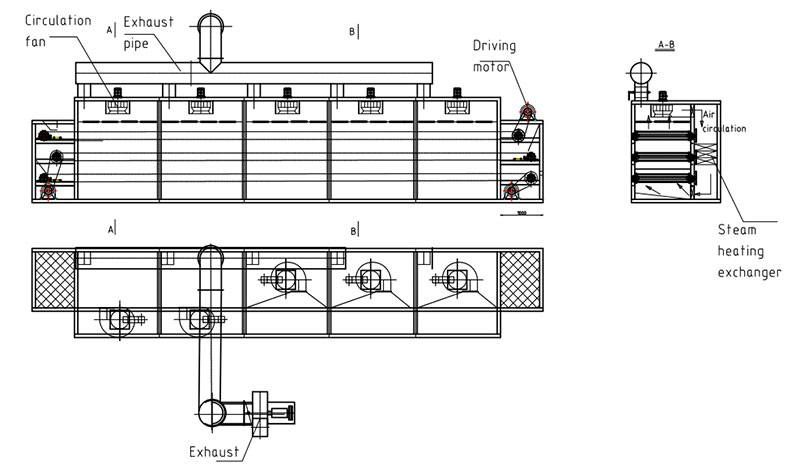

Working Principle

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user’s requirements. The number of section might be selected according to the production demands.

Mesh Belt MAIN FEATURE

◎Amount of air, heating temperature, time of material sticking on the belt and velocity of feeding material can be adjusted in order to obtain the best drying effect.

◎Equipments conjuration is very ¬flexible. It can use the netlike belt washing system and cooling raw material system.

◎Hot air can be circularly applied, the energy is greatly saved.

◎Unique air dividing device, it makes hot air distribute uniformly; this can guarantee products’ quality.

◎Heating source can be selected from steam, conducting heat oil, electricity, and coal furnace and oil burner.

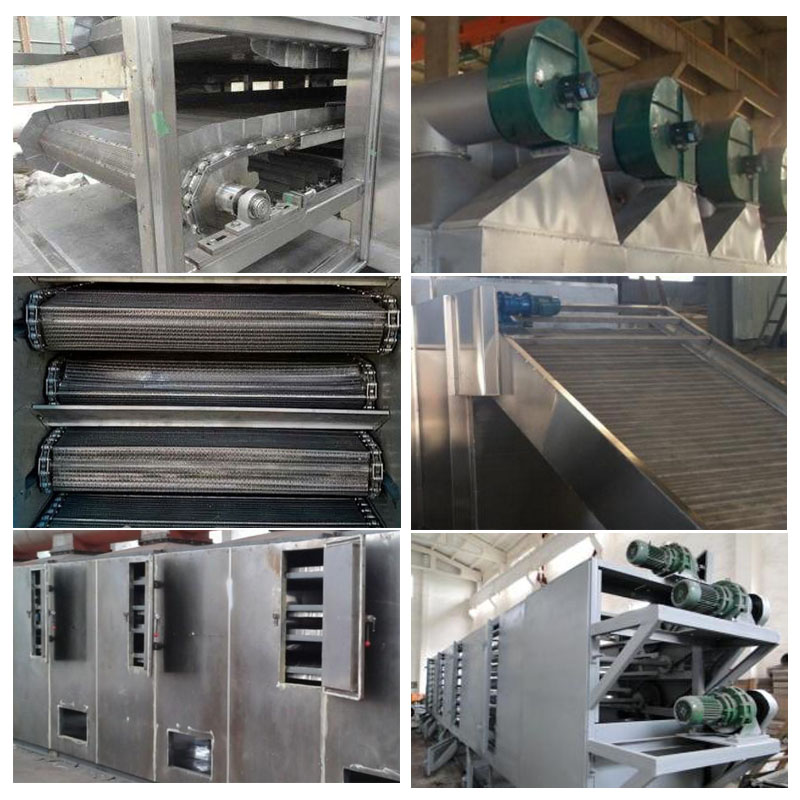

Product Details

KEY APLLICATION

Mesh Belt Dryer Machine used for mass production of continuous drying equipment for the drying of sheet, strip pellet material with better ventilation property, especially for the materials cannot bear high temperature such as dehydrated vegetables, Chinese herbal pieces of high moisture content. Belt driers have many advantages, such as fast drying rate, high evaporation strength, good product quality; cake type of paste materials, wet granulation can also be dried.

Dehydration vegetables, grain feed, monosodium glutamate, shredded coconut stuffing, organic pigments, synthetic rubber, acrylic fiber, medicines, medicinal herbs, wooden products, plastic products, electronic components aging, curing and so on.

Our Services

24 hours per day,365 days per year online service

Enquiry will be replied in 2 hours

One year warranty

OEM & ODM are available

Free spare parts for any breakdown under convincing eviden

About Us

Billicom is a group company specializing in dehydration treatment of various industrial materials, headquartered in Changzhou City, Jiangsu Province, with business in more than 20 countries and regions, selling products to customers all over the world. We are committed to innovative design and manufacturing, providing and serving high-value equipment solutions for industrial customers.

We provide customers with a wide range of industrial process solutions for material dehydration, including dryers, filtration equipment, evaporators, mixers, granulation equipment, packaging equipment, pumps, weighing equipment and heat exchangers. Our products serve global customers in chemical, food, pharmaceutical, mining, general industry and sludge treatment markets.

We are a manufacturer and after-sales service provider of highly engineered products and process solutions, which are widely used in various industrial manufacturing industries, including pumps, rotary valves, atomizers and industrial control systems. To provide high-quality, competitive price products and services to global customers.

FAQ

Q:Are you manufacturer or trading company?

A:We are group company 20 years experience professional manufacturer of drying machine,mixing machine,granulating machine.And we also have 20 years experience for exporting machines.

Q:Where is your factory located?

A:The factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to the factory is about 260Km,it need about 3 hours by car.

Q:If can make a testing in your factory?

A:Sure,our factory have Spray Dryer Machine for testing, you can take 10~50kgs raw material to our factory for testing.

Q:How Can I select the right Spray dryer Machine ?

A:We will help you choose the right type and model for Spray dryer Machine, by knowing the following information:

Liquid name and property: Solid contents(or water contents), viscosity , surface　tension and PH value.

Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.

Output capacity: shift time daily .

Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil　and natural gas .

Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric component brand require.

Powder collection requirement: whether it’s necessary to use cloth bag filter and the requirement of the environment of the exhausted gas .

Other special requirements.
