Inquiry:
Rotary Kiln Dryer Machine
Rotary Kiln Dryer Machine
- Dryer Type:Rotary Kiln Dryer
- Material: SUS304
- ODM: Avalible
- Delivert time: 35 dyas
- Product description: Billicom Rotary Kiln Dryer Machine is widely used in chemical, pharmaceutical, food and other industries
Product Description:

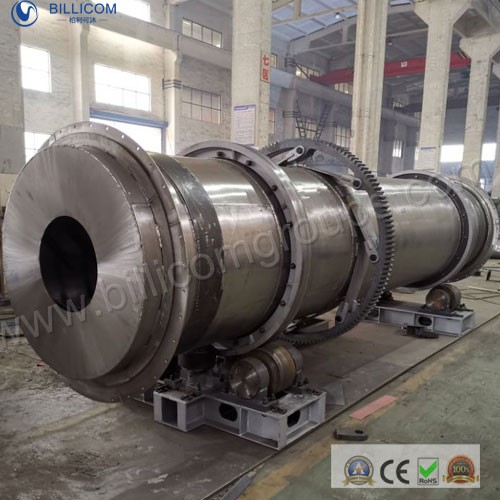

What is the Rotary Kiln Dryer
Machine Video Link: https://youtu.be/8JGdEMDazjQ
HG rotary kiln dryer is a cylinder with a slightly inclined main body and adjustable speed within a certain range. Wet materials are fed into the cylinder by the feeder. Under the turning of the plate copying device uniformly distributed in the inner cylinder, the materials are evenly distributed and dispersed in the dryer and fully contacted with the hot air (parallel or counter current) passing through the cylinder, which speeds up the heat and mass transfer of drying. So as to achieve the purpose of drying.
|
Item |
Capacity (T/h) |
Rotary Speed (rpm) |
Motor Power (KW) |
Install Angle (°) |
Moister Final |
|
Ф1.0x5.0m |
0.5~1.2 |
0.6~6 |
4 |
3~5 |
≤1.5% |
|
Ф1.2x6~10m |
1.5~3 |
0.6~6 |
5.5 |
3~5 |
≤1.5% |
|
Ф1.5x12~18m |
3~5.5 |
0.6~6 |
15 |
3~5 |
≤1.5% |
|
Ф1.8x12~18m |
5~6.5 |
0.6~6 |
18.5 |
3~5 |
≤1.5% |
|
Ф2.2x12~22m |
7~12 |
0.6~6 |
22 |
3~5 |
≤1.5% |
|
Ф2.4x15~20m |
9~15 |
0.6~6 |
30 |
3~5 |
≤1.5% |
|
Ф3.0x25m |
16 |
0.6~6 |
55 |
3~5 |
≤1.5% |
Work Principle
After the wet material is put into the dryer from one end, the plate copying device with uniform distribution in the inner cylinder turns over, the material is evenly distributed and dispersed in the dryer, and fully contacts with the parallel flow (countercurrent) hot air, which speeds up the drying heat transfer and transfers to the driving force. In the process of drying, the material can move to the star discharge valve of the other section of the dryer to discharge the finished product under the action of the inclined plate and hot air flow.
Product Details
Rotary Kiln Dryer MAIN FEATURE:
1. large heat transfer area, high thermal efficiency
2. high handling ability, suitable for the continuous operation
3. low drying temperature, simple operation, easy to use
4. The gas is only used to transfer the volatile component, little amount of gas is used, and the dust removal system is simple.
5. High efficiency of the airtight system, extremely suitable for the recycling of organic solvents such as ethane.
Factors of Consider for selecting Rotary Kiln Dryer
Heating Source: Steam,Gas,Fuel oil,electric,etc..
PH valve and Density of Raw material.
The max temperature of withstand.
The viscosity of raw material
The size of material
Rotary Kiln Dryer KEY APLLICATION:
1. Applicable for drying big particles, heavy particles in chemical, mining, and metallurgy, such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine.
2. For drying the powder or particles with special requirements, such as H P foaming blowing agent, residule of alcohol, light calcium carbonate, active clay, magnetic powder , graphite, and residue of medicine.
3. For materials to be dried under low temperature and large lot continuous production.
Our Services
24 hours per day,365 days per year online service
Enquiry will be replied in 2 hours
One year warranty
OEM & ODM are available
Free spare parts for any breakdown under convincing eviden
About Us
Billicom is a group company specializing in dehydration treatment of various industrial materials, headquartered in Changzhou City, Jiangsu Province, with business in more than 20 countries and regions, selling products to customers all over the world. We are committed to innovative design and manufacturing, providing and serving high-value equipment solutions for industrial customers.
We provide customers with a wide range of industrial process solutions for material dehydration, including dryers, filtration equipment, evaporators, mixers, granulation equipment, packaging equipment, pumps, weighing equipment and heat exchangers. Our products serve global customers in chemical, food, pharmaceutical, mining, general industry and sludge treatment markets.
We are a manufacturer and after-sales service provider of highly engineered products and process solutions, which are widely used in various industrial manufacturing industries, including pumps, rotary valves, atomizers and industrial control systems. To provide high-quality, competitive price products and services to global customers.
FAQ
Q:Are you manufacturer or trading company?
A:We are group company 20 years experience professional manufacturer of drying machine,mixing machine,granulating machine.And we also have 20 years experience for exporting machines.
Q:Where is your factory located?
A:The factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to the factory is about 260Km,it need about 3 hours by car.
Q:If can make a testing in your factory?
A:Sure,our factory have Spray Dryer Machine for testing, you can take 10~50kgs raw material to our factory for testing.
Q:How Can I select the right Spray dryer Machine ?
A:We will help you choose the right type and model for Spray dryer Machine, by knowing the following information:
Liquid name and property: Solid contents(or water contents), viscosity , surface tension and PH value.
Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.
Output capacity: shift time daily .
Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil and natural gas .
Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric component brand require.
Powder collection requirement: whether it’s necessary to use cloth bag filter and the requirement of the environment of the exhausted gas .
Other special requirements.
