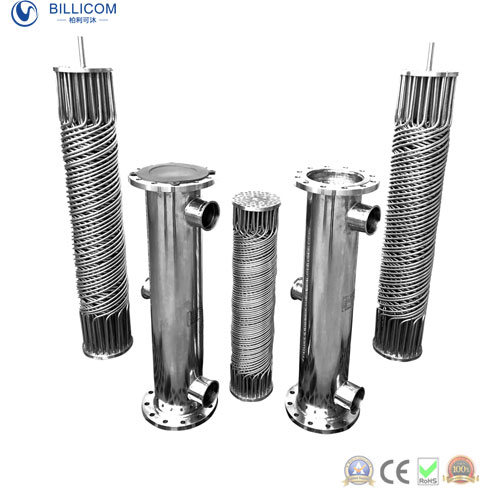

SWT Spiral wound tube heat exchanger

  • SWT Spiral wound tube heat exchanger
SWT Spiral wound tube heat exchanger

SWT Spiral wound tube heat exchanger

  • Exchanger Type:Spirl wound
  • Material: SUS304
  • ODM: Avalible
  • Delivert time: 35 dyas
  • Product description: Billicom's SWT Spiral wound tube heat exchanger is widely used in chemical, pharmaceutical, food and other industries
  • INQUIRY   EMAIL
Product Description:

What is SWT Spiral wound tube heat exchanger

Among many high efficiency and energy-saving heat exchangers, winding tube heat exchanger has irreplaceable position in some industrial processes because of its unique advantages, such as compact structure, high heat exchange efficiency, long service life and good economic benefits. If the working pressure can reach 2MPa, it is difficult to be provided by other heat exchangers. At present, the spiral wound tube heat exchanger is widely used in petrochemical, chemical fertilizer, air separation and liquefied natural gas.

PRODUCT ADVANTAGES:

1. Due to the unique spiral wound tube structure, the material and circulating water form a strong turbulent flow state in the heat exchanger, making the cold and hot media fully contact with the tube wall, greatly improving the heat transfer effect.

2. Spiral wound tube structure, the length of the heat exchange tube is 3-6 times of the shell length. Generally, the length of our heat exchange tube is about 2-4 meters, so that the material stays longer in the heat exchange tube and the heat exchange is more sufficient. Moreover, we make full use of the finite element principle, we have many thin tubes in the heat exchanger, and the material is unitized, so that the contact area between the material and the tube wall is increased, and the temperature of the material at the outlet is decreased more Low cost, complete condensation, improved recovery.

3. Fouling of heat exchanger is the most direct reason for reducing heat exchange efficiency and service life of heat exchanger. Due to the slow circulating water flow speed of tube and spiral plate heat exchanger, the water temperature near the tube wall is high during heat exchange, and the calcium and magnesium ions in water begin to be active when the normal water temperature is about 50 ℃, The higher the temperature, the more intense the reaction with carbon dioxide in water, forming magnesium carbonate and calcium carbonate attachments, reducing the heat transfer effect, resulting in a vicious circle. Our design ensures that the pressure loss of the circulating water in the heat exchanger is small, so that the circulating water in the heat exchanger maintains a high flow rate, so that the laminar flow on the surface of the heat exchange tube is low. Even if the temperature reaches the reaction temperature of calcium and magnesium ions, the high flow rate will also make the attachment wash out, and our heat exchange tube is passivated, and the special treatment makes our heat exchange tube wall very smooth, Dirt is not easy to adhere to the tube wall, if the normal row of tubes and spiral plate need a year to clear the dirt, our heat exchanger at least in more than a year and a half.

4. The structure is compact and the heat exchange efficiency is high. Because of its compact structure, the turbulent effect is produced when the fluid flows through the tube side and shell side, so the heat exchange efficiency bureau is very strong.

5. The pulling force of tube plate is almost zero. In the process of medium cold and heat exchange, the tube bundle is subject to greater thermal stress when the temperature difference between cold and heat in fluid medium is large. In the heat exchanger of the tube, the contact between tube plate and pipe is often damaged due to the thermal stress. Because of the spiral winding structure of the tube bundle of the wound tube heat exchanger, the heat stress of the heat exchanger can be eliminated by itself. Therefore, the pulling off force of the tube plate is almost zero, which is not easy to damage and the life of the heat exchanger is prolonged.

6. The long-term operation has good economic benefits and high heat exchange efficiency of spiral wound tube heat exchanger. Therefore, the same heat exchange is needed in the same case of the same heat exchange logarithm difference, which requires a small heat exchange area and less energy consumption; in addition, the pulling force of the tube plate of the spiral wound tube heat exchanger is almost zero, which is not easy to damage. Therefore, the winding tube heat exchanger can save the production and maintenance cost in the process of long-term operation.

7. It is easy to be large-scale. Because of the limitation of the length of heat exchanger, it is not easy to make the ratio of length to diameter larger. If the diameter is large, the thickness of shell and tube plate is increased, it is not only uneconomical but also unfavorable for manufacturing and transportation. The coil structure is adopted in the winding tube heat exchanger, which can be made into a large ratio of length to diameter.

Our Services

24 hours per day,365 days per year online service

Enquiry will be replied in 2 hours

One year warranty

OEM & ODM are available

Free spare parts for any breakdown under convincing eviden

About Us

Billicom is a group company specializing in dehydration treatment of various industrial materials, headquartered in Changzhou City, Jiangsu Province, with business in more than 20 countries and regions, selling products to customers all over the world. We are committed to innovative design and manufacturing, providing and serving high-value equipment solutions for industrial customers.

We provide customers with a wide range of industrial process solutions for material dehydration, including dryers, filtration equipment, evaporators, mixers, granulation equipment, packaging equipment, pumps, weighing equipment and heat exchangers. Our products serve global customers in chemical, food, pharmaceutical, mining, general industry and sludge treatment markets.

We are a manufacturer and after-sales service provider of highly engineered products and process solutions, which are widely used in various industrial manufacturing industries, including pumps, rotary valves, atomizers and industrial control systems. To provide high-quality, competitive price products and services to global customers.

FAQ

Q:Are you manufacturer or trading company?

A:We are group company 20 years experience professional manufacturer of drying machine,mixing machine,granulating machine.And we also have 20 years experience for exporting machines.

Q:Where is your factory located?

A:The factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to the factory is about 260Km,it need about 3 hours by car.

Q:If can make a testing in your factory?

A:Sure,our factory have Spray Dryer Machine for testing, you can take 10~50kgs raw material to our factory for testing.

Q:How Can I select the right Spray dryer Machine ?

A:We will help you choose the right type and model for Spray dryer Machine, by knowing the following information:

Liquid name and property: Solid contents(or water contents), viscosity , surface tension and PH value.

Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.

Output capacity: shift time daily .

Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil and natural gas .

Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric component brand require.

Powder collection requirement: whether it’s necessary to use cloth bag filter and the requirement of the environment of the exhausted gas .

Other special requirements.
