WFJ Mill Machine

What is the WFJ Mill Machine

Machine Video Link: https://youtu.be/ReOONMmyKW4

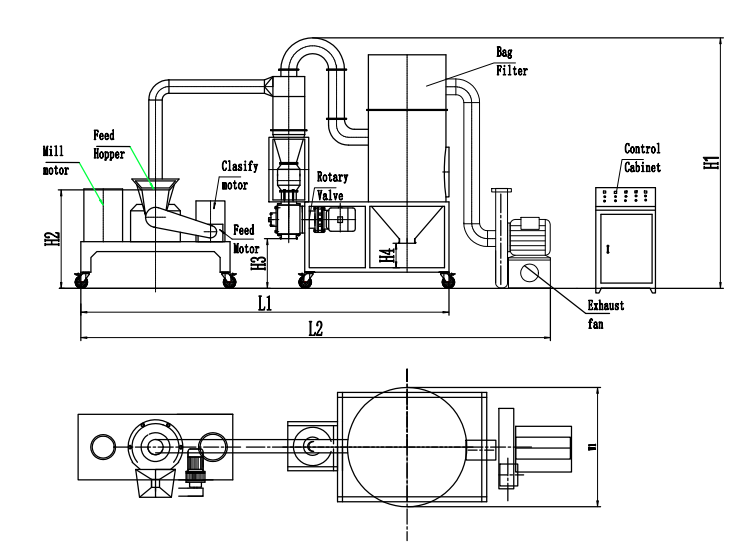

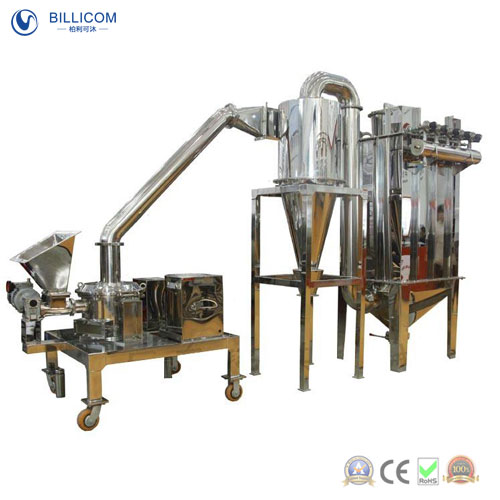

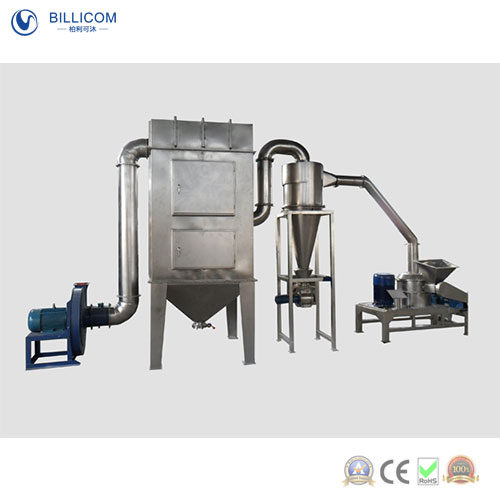

The machine is made up of three parts: main machine, auxiliary machine and electric control box. It has the properties of wind selection, having no sieve or net, and an even granularity of the processed material. The production process going on continuously, the machine can undertake the grinding of chemical products .food .medicines, medicament, cosmetics, plastic, dyestuff, resin .grain, etc.

Model	Main Structural Dimensions(mm)							Capacity	Input Particle Size	Output Particle Size	Speed	Machine weight
	L1	L2	H1	H2	H3	H4	W1	Kg/H	mm	mm	rpm	Kg
WFJ-18	3950	——	2640	850	650	350	1450	10-150	<6	60-320	1100	600
WFJ-20	4300	5900	2800	850	650	350	1450	15-200	<10	60-320	1300	5400
WFJ-30	5250	7050	3200	950	650	350	1550	50-600	<12	60-320	2000	3800
WFJ-60	6100	8100	3700	1050	650	400	2000	100-1000	<15	60-320	3800	2900
WFJ-80	7200	9200	4250	1150	650	400	2300	120-1800	<15	60-320	5100	2500
WFJ-100	7900	10100	4500	1250	650	400	2500	150-2000	<20	60-320	7400	2000

Main Feature

The design is compact and structure is reasonable. The machine is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consumption. Euipped with a draught fan, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials. Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh. Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained. The top cover of the main machine is opened with pneumatic springs and the body is contructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts. The main grinding parts are made of high-grade alloy tool steel so that the service life or change cycle of the wear parts is greatly lengthened. High-speed precision bearings imported from abroad are adopted for the bearing system so that the whole machine runs smoothly with little vibration and noise. The pipes are of quick-detachment construction, making detachment and cleaning quick and convenient. Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collecting bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environmental protection in waste gas discharge. The fine powder collected by the dust collecting bag can be effectively recycled. thus the material loss is reduced.

Our Services

24 hours per day,365 days per year online service

Enquiry will be replied in 2 hours

One year warranty

OEM & ODM are available

Free spare parts for any breakdown under convincing eviden

About Us

Billicom is a group company specializing in dehydration treatment of various industrial materials, headquartered in Changzhou City, Jiangsu Province, with business in more than 20 countries and regions, selling products to customers all over the world. We are committed to innovative design and manufacturing, providing and serving high-value equipment solutions for industrial customers.

We provide customers with a wide range of industrial process solutions for material dehydration, including dryers, filtration equipment, evaporators, mixers, granulation equipment, packaging equipment, pumps, weighing equipment and heat exchangers. Our products serve global customers in chemical, food, pharmaceutical, mining, general industry and sludge treatment markets.

We are a manufacturer and after-sales service provider of highly engineered products and process solutions, which are widely used in various industrial manufacturing industries, including pumps, rotary valves, atomizers and industrial control systems. To provide high-quality, competitive price products and services to global customers.

FAQ

Q:Are you manufacturer or trading company?

A:We are group company 20 years experience professional manufacturer of drying machine,mixing machine,granulating machine.And we also have 20 years experience for exporting machines.

Q:Where is your factory located?

A:The factory located in Changzhou City,Jiangsu Province,near in Shanghai.Form Shanghai Pudong airprot to the factory is about 260Km,it need about 3 hours by car.

Q:If can make a testing in your factory?

A:Sure,our factory have Spray Dryer Machine for testing, you can take 10~50kgs raw material to our factory for testing.

Q:How Can I select the right Spray dryer Machine ?

A:We will help you choose the right type and model for Spray dryer Machine, by knowing the following information:

Liquid name and property: Solid contents(or water contents), viscosity , surface　tension and PH value.

Dried powder density residual water contents allowed, particle size, and maximum temperature allowed.

Output capacity: shift time daily .

Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil　and natural gas .

Control requirement: whether or not the inlet and outlet temperatures should be controlled.PLC or button type,electric component brand require.

Powder collection requirement: whether it’s necessary to use cloth bag filter and the requirement of the environment of the exhausted gas .

Other special requirements.
